Router Profile Wheel MEM A30 r5

These sets of tools are for producing shaped edges or profiles on a stone slab. They can be used on any Edge Profiling Router Machine from manufacturers such as Marmoelettromeccanica (MEM), Ghines and Oma, that have an external waterfeed.

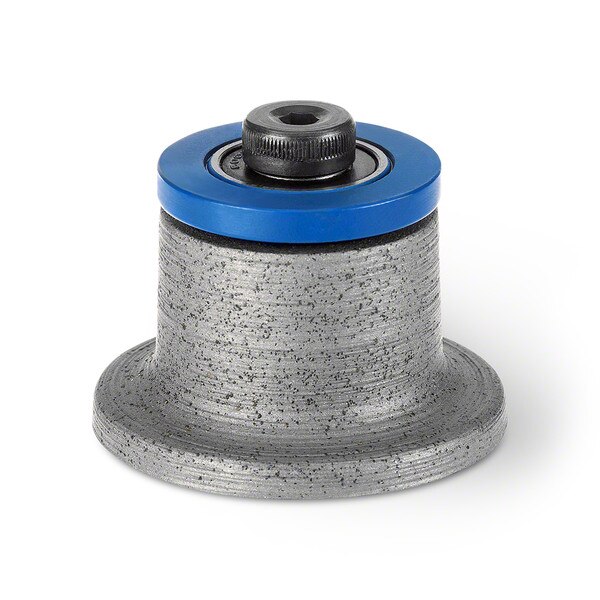

These tools feature a rotating toucher washers that follow along the edge of the stone, to produce the exact profile shape.

By using the full set, it is possible to produce highly polished finished edges without lines or scratches that are extremely difficult and time consuming to produce by hand.

The use of these tools also help to reduce dust emissions in your workshop as they are water fed.

Marmoelettromeccanica (MEM) invented the concept of the toucher washer and continues to push the performance of diamond tools with the following technologies available for this edge detail shape. See the articles below for more information.

Marmoelettromeccanica (MEM) produce profiles for both Edge Profiling Router Machines and Computerised Numerical Control (CNC) Machines. Profiles can be matched for both machines. This gives flexibility in production planning as one job can be produced on both kinds of machines and the edges match.

These tools can produce a high gloss finished edge on both flat or curved edges.

  • Fitting: M8 bolt (M10 on request)
  • Bore: 22.22mm
  • Machine: Manual or unguided machines that accepts M8/M10 bolt fittings and work with rotating toucher washers
  • Cooling Type: External

These tools feature a rotating toucher washers that follow along the edge of the stone. The edge needs to be smooth in order for the routers to follow it.

In general, the profile wheel should be pushed into the stone as far as possible and then moved along. This reduces the risk that the wheels to wear out in specific spots.

How To Use Marmoelettromeccanica Edge Profiling Router Tools
Advice On Extending the Lifespan of Edge Profiling Router Tools

  • Do not exceed maximum rpm
  • Max rpm: Pos 00 - Pos 3: 6000rpm
  • Max rpm: Pos 4 - Pos 6: 3000rpm

The table below shows the recommended tool sequences for different materials and displays our product code for each position. The ECO set represent the lowest cost set for granite, quartz and hard stone.

Granite, Quartz
and Hard Stone
Granite, Quartz
and Hard Stone
(ECO)
Marble
Pos 02055620556
Pos 1167071670616705
Pos 2167101670916708
Pos 3167111671116711
Pos 4167121671216712
Pos 5167131671316713
Pos 6167141671416714

Code
Position
Kind
Fitting
Radius
Quantity
Stock
Price
Code
16712
Position
Pos 4
Kind
MEM Long Life
Fitting
M8 Bolt
Radius
5mm
Quantity
Stock
Available to Ship
Note: Only 1 in Stock.
Remainder Available to Ship 22 Days After Order
Price
£112.46 Ex. VAT
Code
16713
Position
Pos 5
Kind
MEM Long Life
Fitting
M8 Bolt
Radius
5mm
Quantity
Stock
Available to Ship
Note: Only 1 in Stock.
Remainder Available to Ship 22 Days After Order
Price
£112.46 Ex. VAT
Code
16714
Position
Pos 6
Kind
MEM Long Life
Fitting
M8 Bolt
Radius
5mm
Quantity
Stock
Available to Ship
Note: Only 1 in Stock.
Remainder Available to Ship 22 Days After Order
Price
£112.46 Ex. VAT
Code
16706
Position
Pos 1
Kind
Perfect Form
Fitting
M8 Bolt
Radius
5mm
Quantity
Stock
Available to Ship 22 Days After Order
Price
£170.13 Ex. VAT
Code
16709
Position
Pos 2
Kind
Perfect Form
Fitting
M8 Bolt
Radius
5mm
Quantity
Stock
Available to Ship 22 Days After Order
Price
£170.13 Ex. VAT
Code
16711
Position
Pos 3
Kind
Bi Power
Fitting
M8 Bolt
Radius
5mm
Quantity
Stock
Available to Ship
Note: Only 1 in Stock.
Remainder Available to Ship 22 Days After Order
Price
£269.13 Ex. VAT
Code
16705
Position
Pos 1
Kind
Electroplated
Fitting
M8 Bolt
Radius
5mm
Quantity
Stock
Available to Ship 22 Days After Order
Price
£297.97 Ex. VAT
Code
16708
Position
Pos 2
Kind
Electroplated
Fitting
M8 Bolt
Radius
5mm
Quantity
Stock
Available to Ship 22 Days After Order
Price
£297.97 Ex. VAT
Code
16707
Position
Pos 1
Kind
MEM Professional
Fitting
M8 Bolt
Radius
5mm
Quantity
Stock
Available to Ship
Note: Only 1 in Stock.
Remainder Available to Ship 22 Days After Order
Price
£317.19 Ex. VAT
Code
16710
Position
Pos 2
Kind
MEM Professional
Fitting
M8 Bolt
Radius
5mm
Quantity
Stock
Available to Ship
Note: Only 1 in Stock.
Remainder Available to Ship 22 Days After Order
Price
£317.19 Ex. VAT
Code
20556
Position
Pos 0
Kind
Razorstone
Fitting
M8 Bolt
Radius
5mm
Quantity
Stock
Available to Ship 22 Days After Order
Price
£317.19 Ex. VAT
